Cam-Slide
The Cam-Slide (Model 81 CS) is a sliding quick acting line blind. It has a multi bolt design and a rectangular body. It is appropriate for applications that require fast blinding turnaround up to 2500# pressure class. It can be made as a standard design up to 64 inches (DN 1600).
Quick Request
Questions?

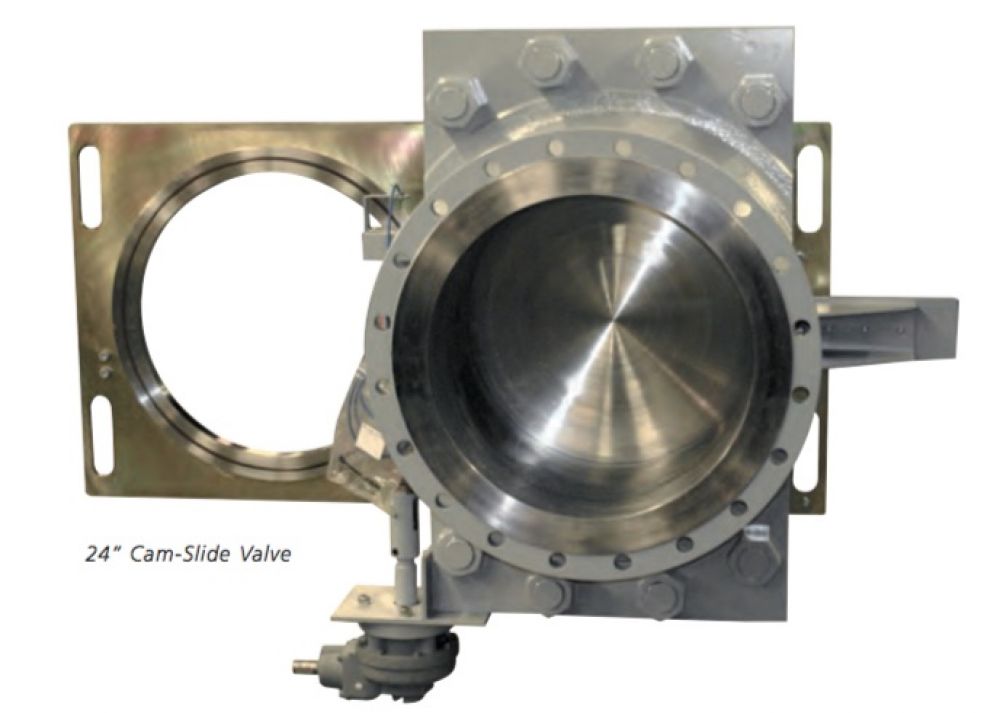

Cam-Slide - Sliding line blind Design & Operation

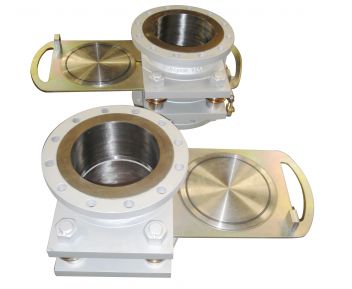

Its multi bolt design enables a more compact build and lighter weight which make it ideal for tight spaces with reduced face to face dimensions. The Cam-Slide is also available as a non spill line blind.

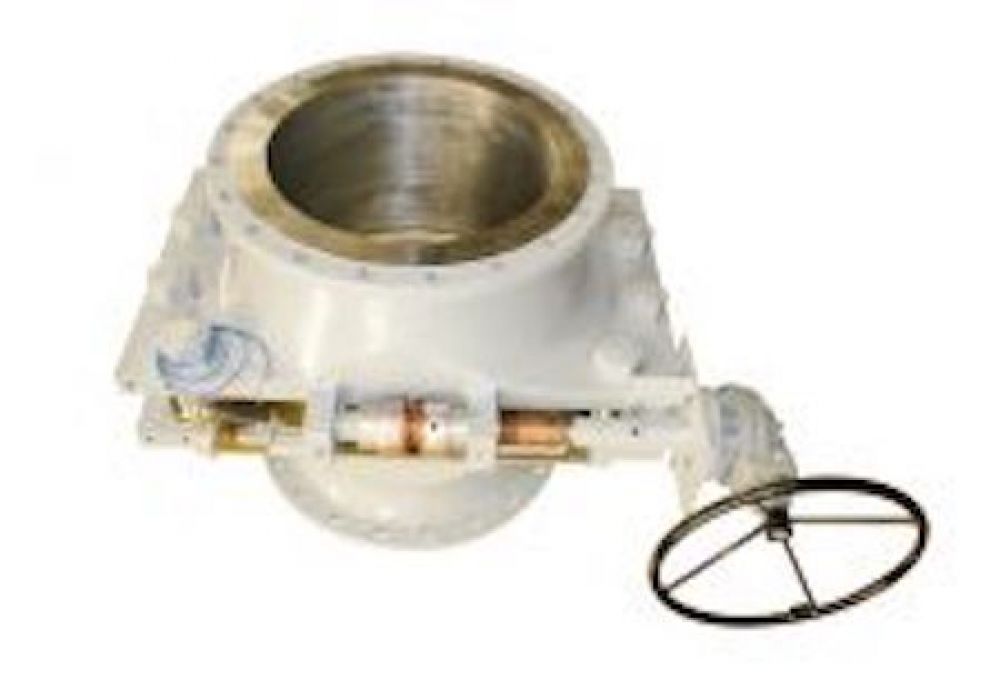

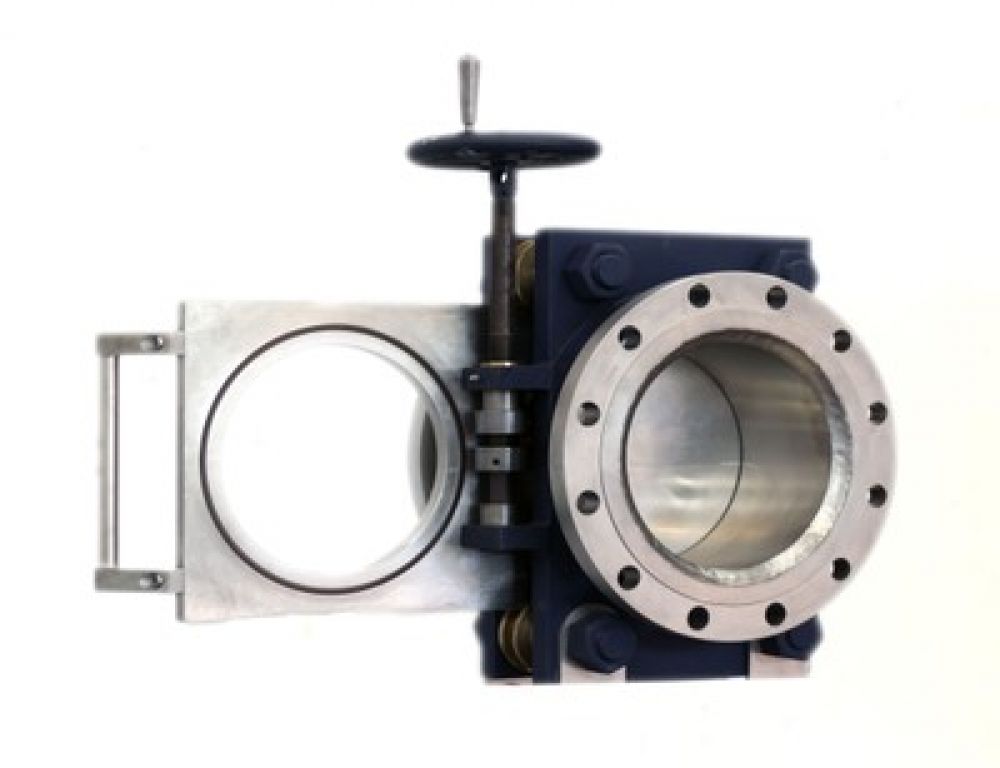

The Cam-Slide also utilizes the tried and tested Cam design. This ensures that the spectacle plate can be locked into place or released in seconds. The plate can then be moved in a sliding motion from left to right and vice versa with ease. For larger size lines 12 inches and above the Cam-Slide can be equipped with a gearbox, making plate position changing even easier.
A special High Temperature Cam-Slide design is also available for processes that require to withstand temperatures over 327 degrees C.
Man Safe – 100% positive isolation- Compact design for tight fit applications
- Available in sizes up to 64 inches and ASME 2500#
- Non line spreading design
- Simple operation – one person, one side, no bolts need to be removed
- Conforms to or exceeds many safety and engineering standards
Fast, Compact and man Safe
- A broad range of sealing rings to match the specific medium and operating conditions including the most common – Viton, Kalrez, Aflas, EPR/EPDM, Kel-F and Vermiculite
- Stem and dust covers for powder applications or dusty operating environments
- Lock out devices
- Electric, pneumatic or hydraulic actuation
- Filter or sieve integration in the spectacle plate
- Drain, vent and purge connections
- Special anti corrosive or medium driven coatings or linings (such as Sermetal, Epoxy, PFA or ceramics)
Engineering Standards
Fetterolf applies the most stringent design criteria to all line blind products. There is no room for compromise for a product that is used to ensure personnel safety.
